What Leaning or Separating Chimney Tells You About Your Foundation Repair
A leaning chimney separates visibly from the house structure, you can see daylight between the chimney and the adjacent exterior wall, or the chimney is visibly tilted away from the house when viewed from the yard. Interior signs include cracks in the firebox, mortar joints pulling apart inside the fireplace, and gaps between the chimney breast and surrounding wall in upstairs rooms.
Leaning chimneys are a frequent call for APS across all Alabama markets. Birmingham-area homes with masonry chimneys on crawl space foundations are especially prone, as the chimney footing often sits on a different soil profile than the house foundation. Huntsville karst geology requires site-specific assessment before selecting a pier approach.
What Causes Leaning or Separating Chimney in Alabama Homes
Chimney Footing Settlement on Separate Pad
Most chimneys in Alabama homes have their own isolated footing poured separately from the house foundation. This footing is typically shallower and smaller than the main foundation. When the soil beneath it compresses or erodes, the chimney settles independently of the house, causing it to lean outward.
Clay Soil Shrinkage Under Footing
Alabama clay shrinks significantly during summer drought. A chimney footing on active clay may lose bearing support and drop during dry periods. Over years of repeated cycles, the cumulative settlement produces visible leaning.
Poor Original Footing Depth
Chimneys built before modern code requirements often have footings that do not reach stable soil. In Huntsville's karst zones, shallow footings over limestone are particularly susceptible to differential settlement as dissolution voids develop.
Water Erosion at Footing
Downspout discharge and grade issues that concentrate water at the chimney base saturate the soil beneath the footing, reducing bearing capacity and triggering settlement. The freeze-thaw cycle in north Alabama further accelerates this process.
Signs You Should Not Ignore
- Visible gap between chimney and adjacent exterior wall
- Chimney visibly out of plumb when viewed from yard
- Cracks in the firebox opening or mortar inside the fireplace
- Flashing pulling away from the chimney face
- Interior wall cracks adjacent to the chimney on upper floors
How We Diagnose and Repair the Problem
- 1
Free On-Site Assessment
An APS technician visits your property, documents the symptom and severity, and reviews all related indicators to build a complete picture.
- 2
Root Cause Diagnosis

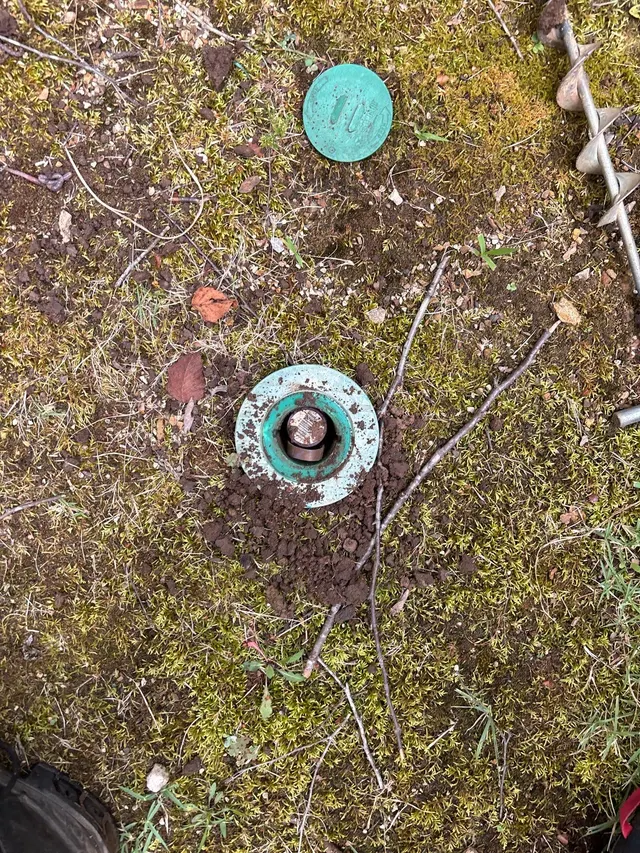

Helical piers are installed beneath the chimney footing to reach load-bearing soil; the pier system then supports the footing and can be used to restore elevation.
- 3
Written Estimate
You receive a clear written scope of work and cost estimate before any repair begins. No obligation.
- 4
Repair With Transferable Warranty
All APS foundation repairs carry a warranty that transfers to future owners. Serving Birmingham, Mobile, Huntsville, and Columbus, GA.
“Chimney footings are the forgotten foundation, every Alabama homeowner focuses on the main foundation, but the chimney is sitting on its own little slab that often got no special attention at all. When the clay moves, it moves too.”
Frequently Asked Questions
Is a leaning chimney dangerous?
Yes. A chimney leaning significantly away from a house can separate completely and collapse. Even a moderately leaning chimney compromises the flue integrity and can allow carbon monoxide, sparks, or combustion gases to enter the house. APS recommends not using a leaning chimney's fireplace until it has been evaluated and stabilized.
Can you repair a leaning chimney without tearing it down and rebuilding it?
In most cases, yes. Helical piers installed under the chimney footing can stabilize it and recover elevation, often eliminating the lean without any masonry demolition. The pier system is installed from the exterior with minimal disruption.
My chimney leans but I never use the fireplace. Does it still need repair?
Yes. A leaning chimney that continues to settle will eventually separate from the house structure, creating a significant collapse hazard. The fact that the fireplace is unused does not stop the soil movement causing the lean.
How many piers does a chimney repair typically require?
Most chimney footing repairs require two to four helical piers, depending on the footing dimensions and the load. The compact helical pier installation equipment can typically access chimney locations that would be difficult for other repair methods.
